This week in the bathroom renovation, I began prepping the shower for tile with some shower waterproofing. I purchased a shower kit by Schluter-Kerdi which has all of the components to completely waterproof a shower. These kits come in multiple sizes, and can be cut down to size. I purchased the 48×48 in. kit from Lowe’s which came with a roll of waterproof sheeting, a drain valve, corner and seam tape, plumbing flanges, and a sloped shower pan.

Time to do some shower waterproofing!

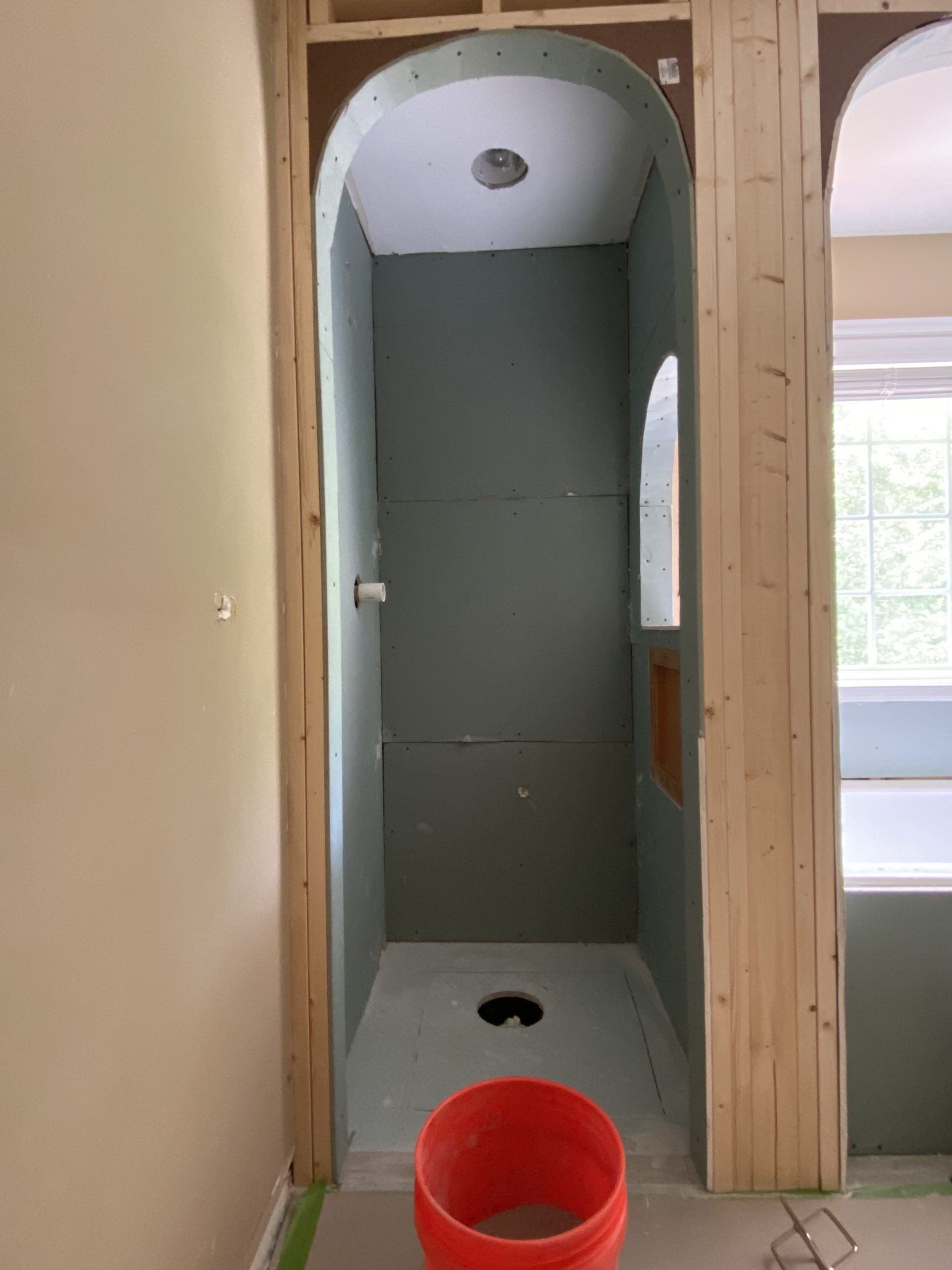

Schluter also offers a thin-set mortar to use with their products. I was not able to find any that would arrive on time, so I used a standard non-modified thin-set mortar as their website recommended. Last week, I installed mold resistant drywall in the shower and the arches. This is an appropriate surface for the Schluter to be applied to. I also purchased a Schluter shower niche. This fit snugly into the wall framing in my shower (I had to install mine under the arch window because there was a stud in the way on the center wall) and secured flush with the drywall.

Mortar

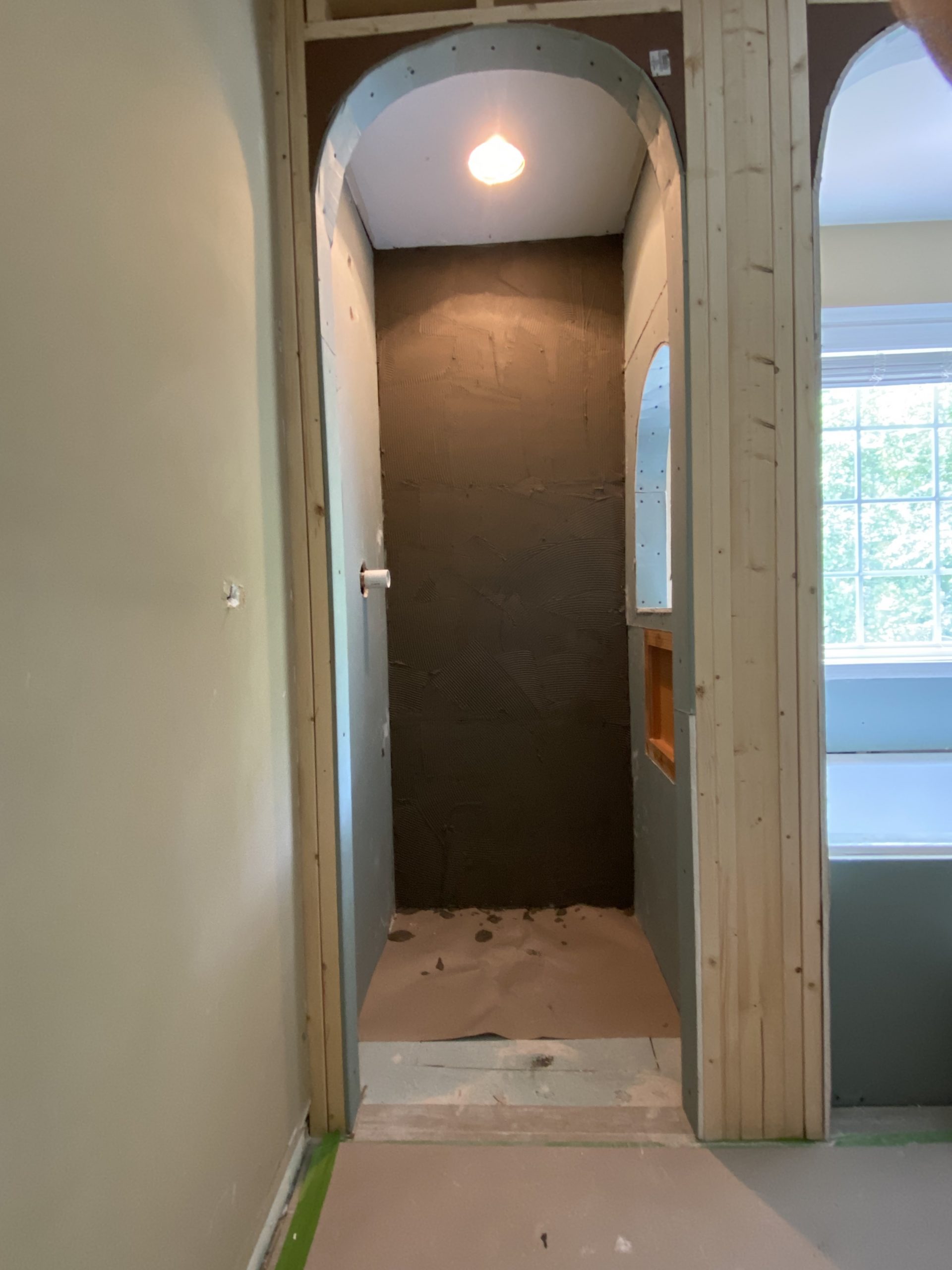

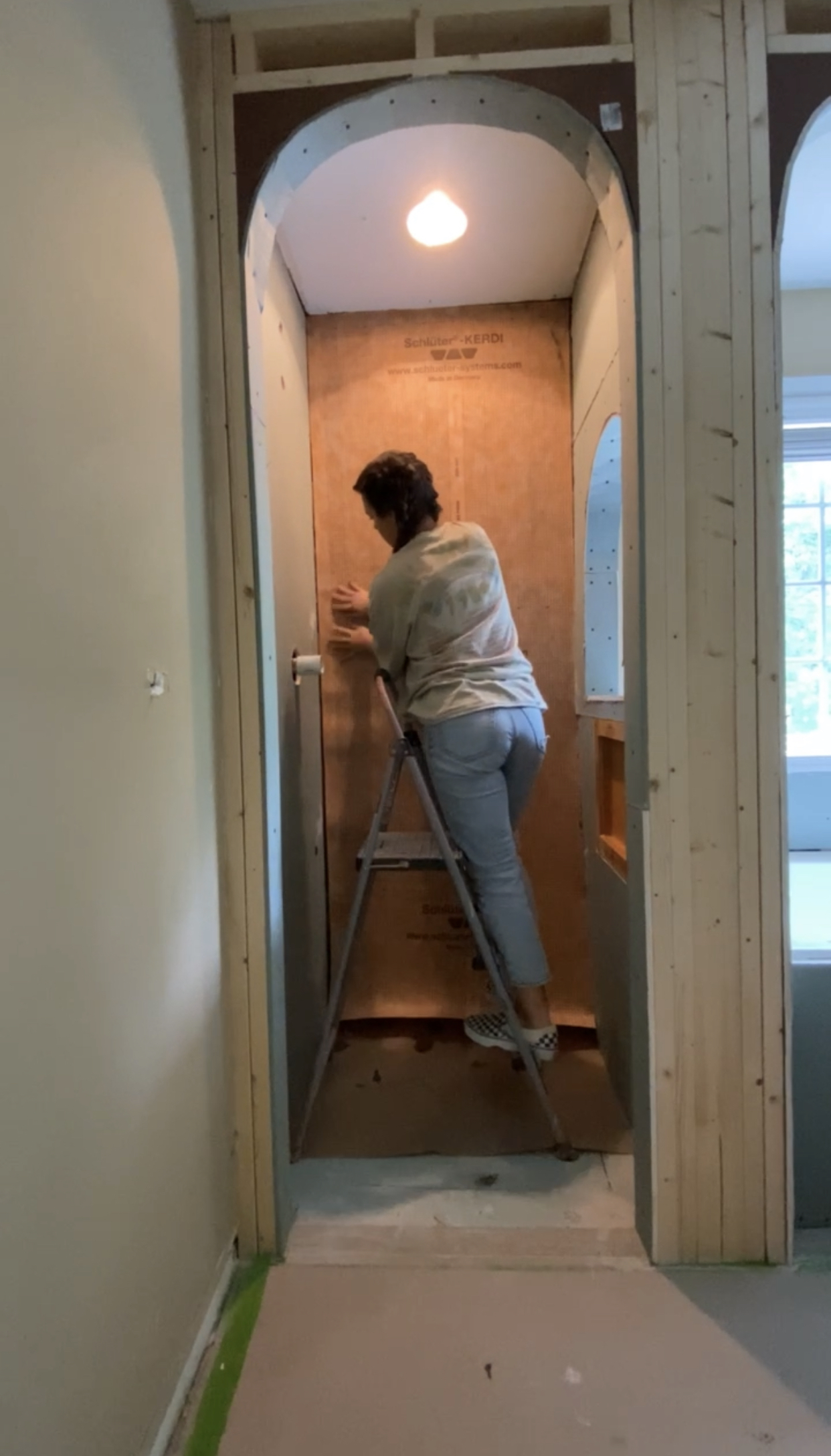

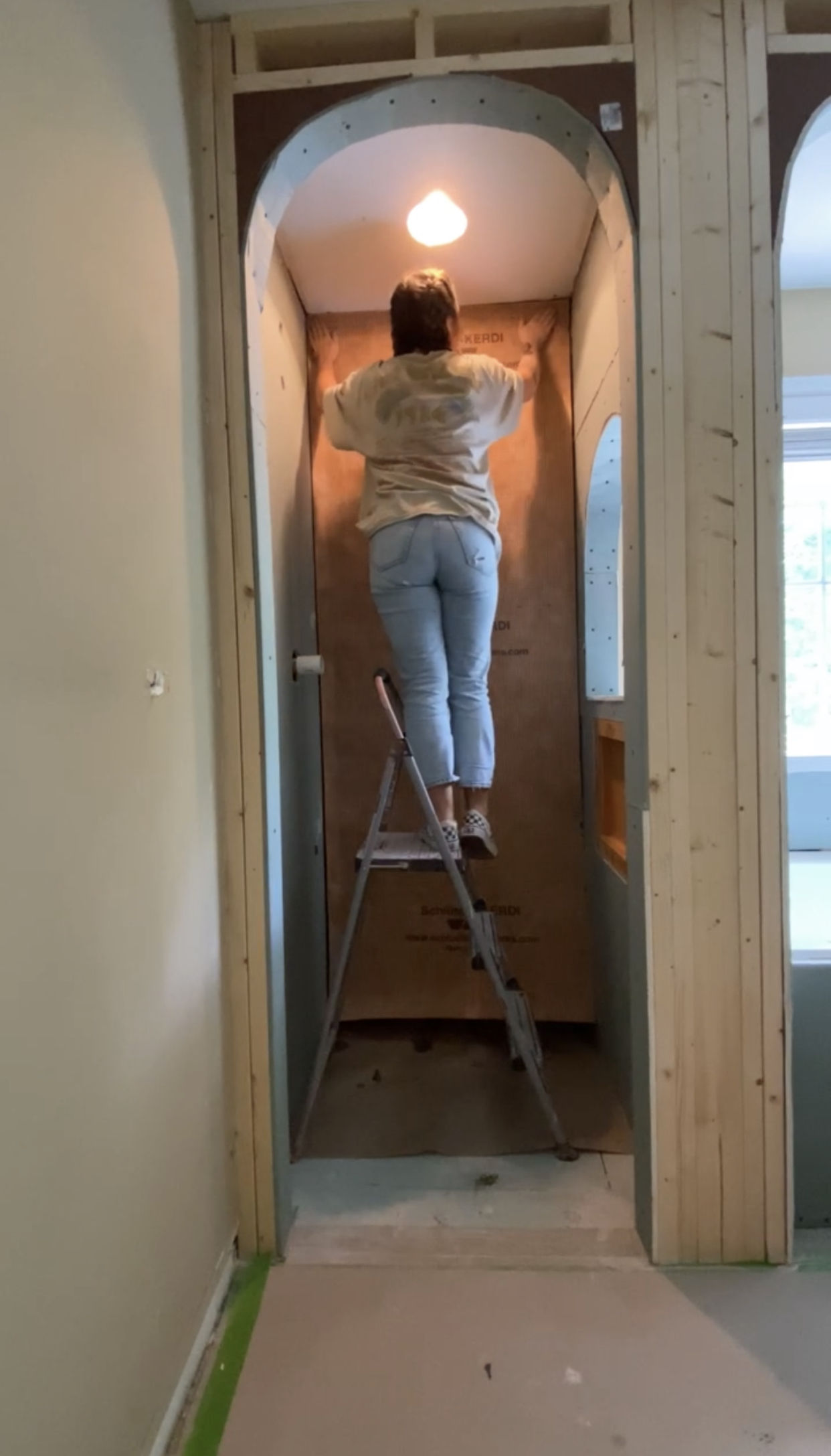

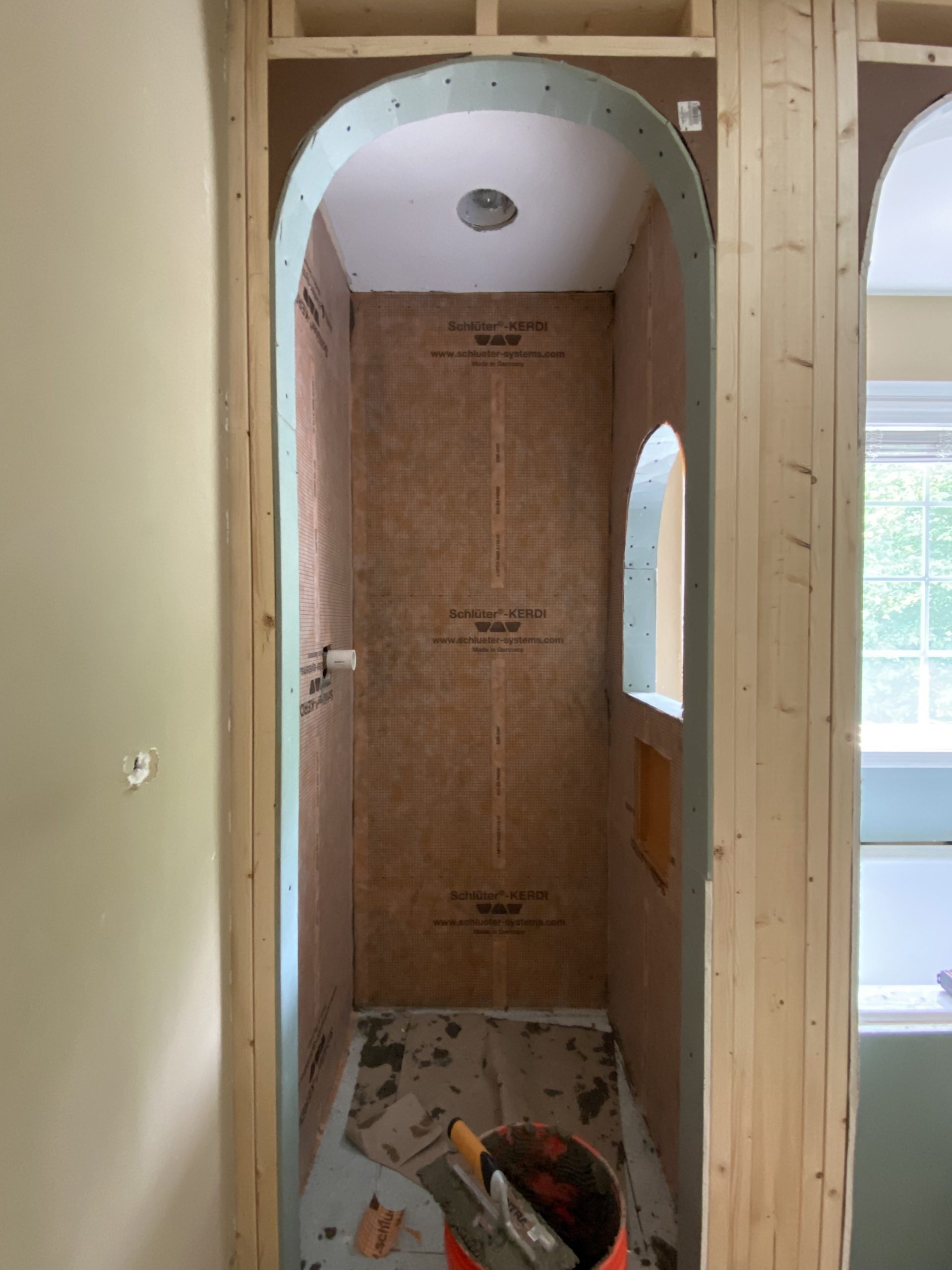

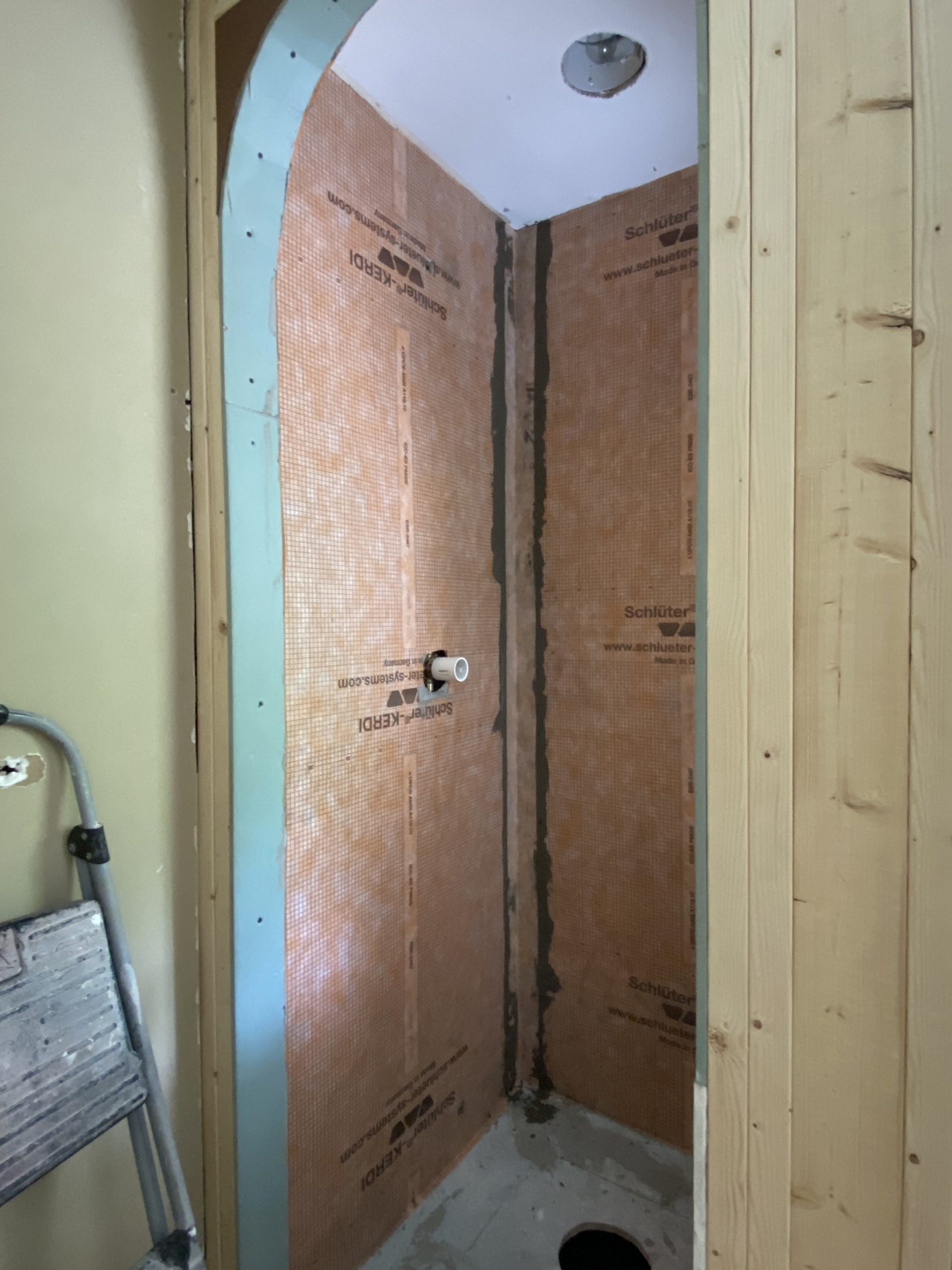

I began the shower waterproofing by applying my thin-set to one wall using a notched trowel (I used the Schluter trowel). Then, I cut down my sheeting to the appropriate size, and began smoothing it onto the wall that I had applied the thin-set to. Next, I worked my way from top to bottom of the wall making sure to smooth out any wrinkling in the membrane. After it was smooth, I went back with a flat edge (I used a large putty knife) to press and smooth the whole wall. This step was repeated for each wall in the shower.

Shower Niche

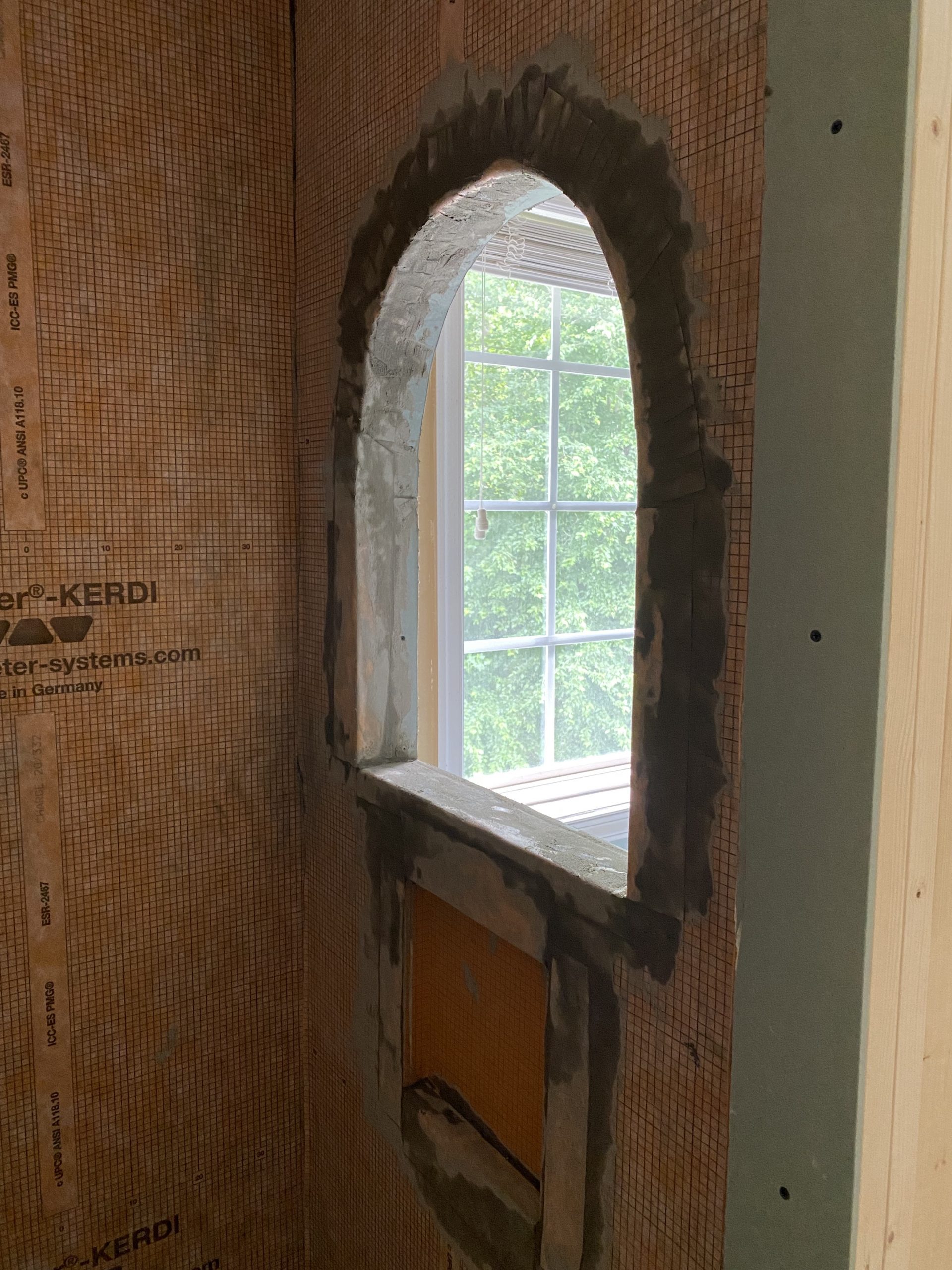

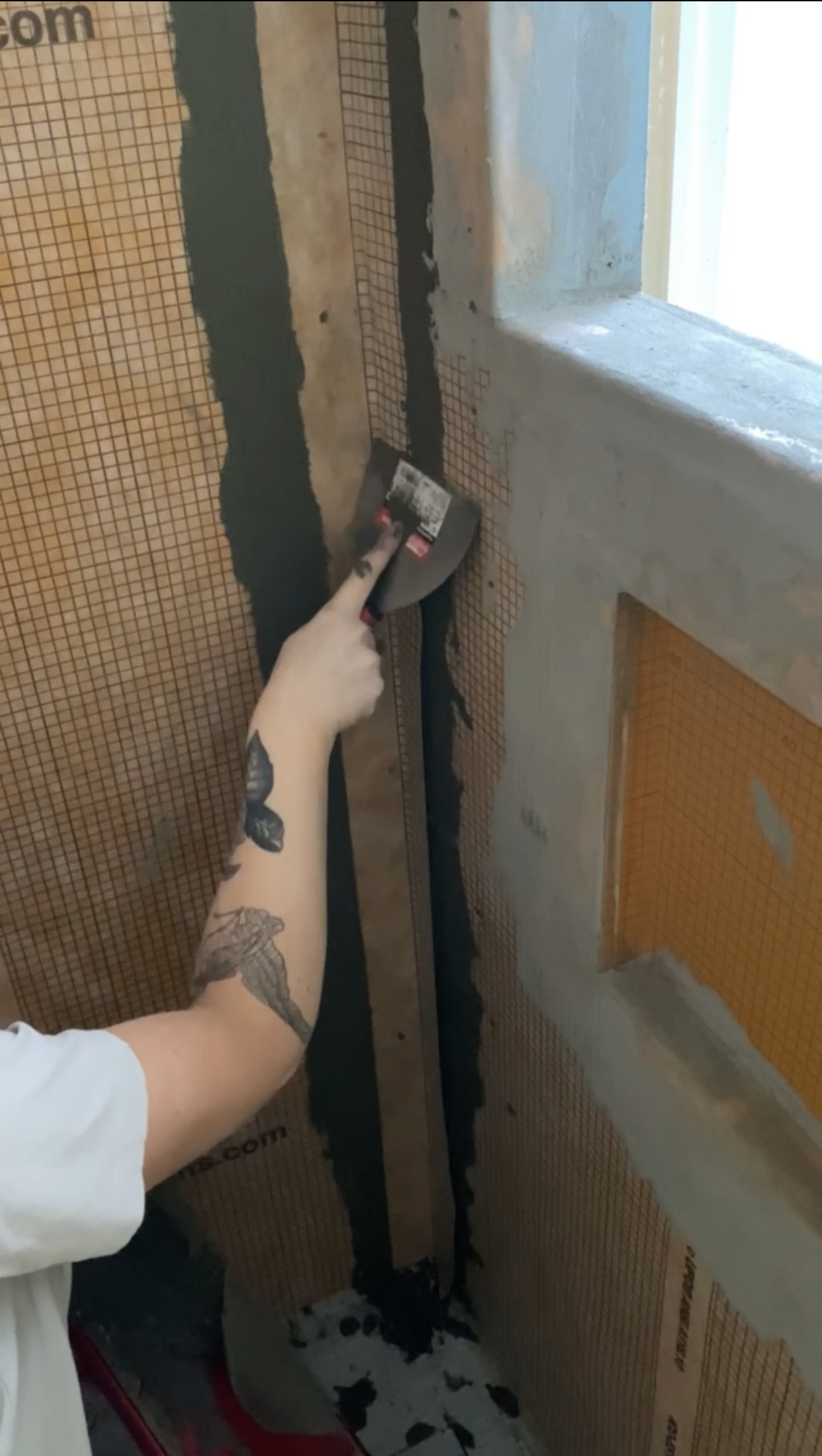

For the shower niche, arch window, and plumbing I used a razor to cut through. After my flat surfaces were covered, I began applying the seam tape to any seams and to the inside edges of the arch window and doorway. First, I applied the thin-set with a small trowel making sure to cover slightly wider than the tape width. I then applied the seam tape and ran a drywall taping knife down each piece to smooth out and remove excess. For the curved openings, I cut small notches along the seam tape to help it bend smoothly. I found that cutting the strip into smaller sections was helpful for the arched areas.

Plumbing

For the plumbing in the shower, I applied the thin-set around and applied the flanges that came with the kit. This helps to seal and keep everything in the shower safe from water leaking. Next was to install the shower pan!

Drain Prep

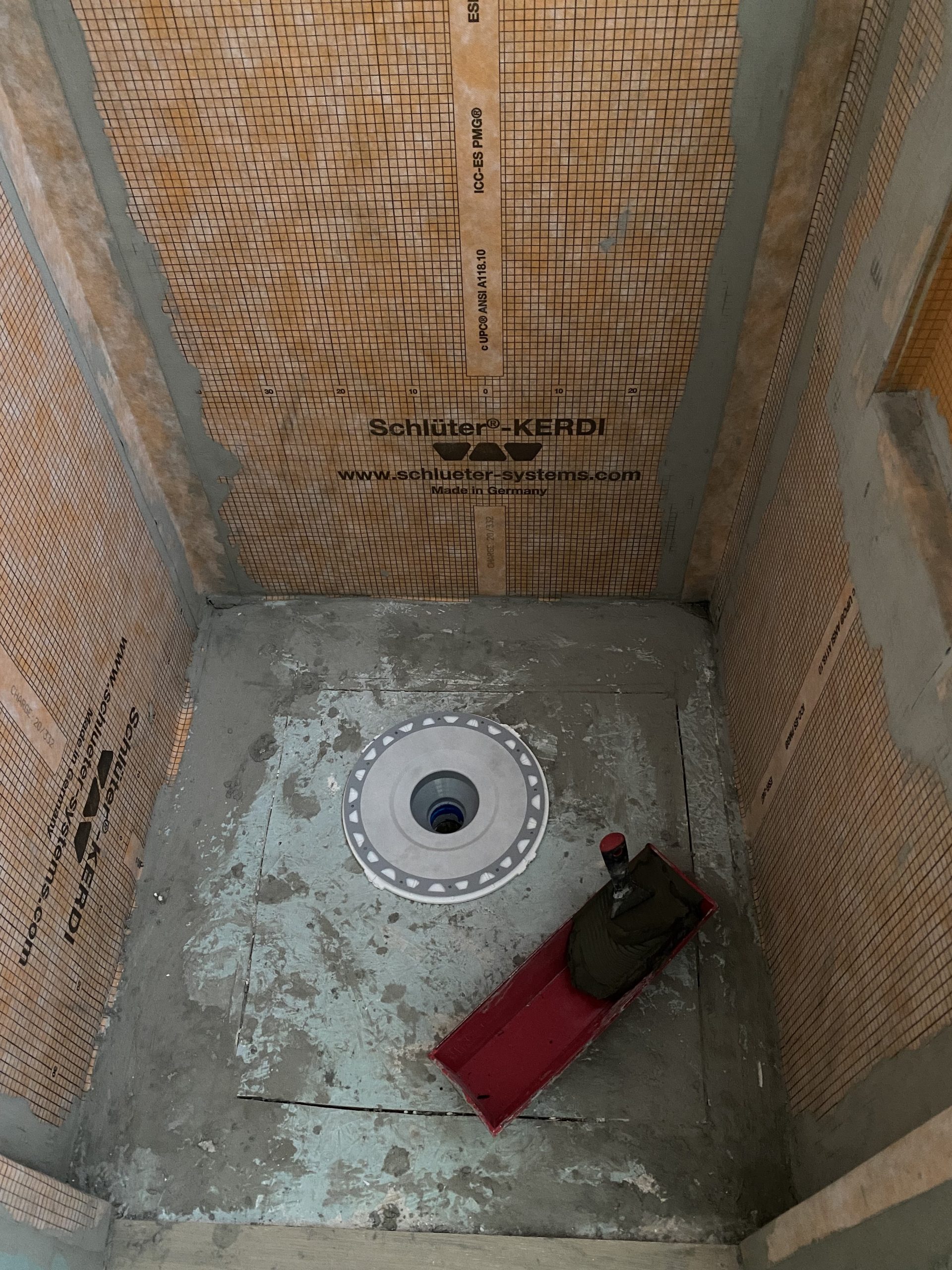

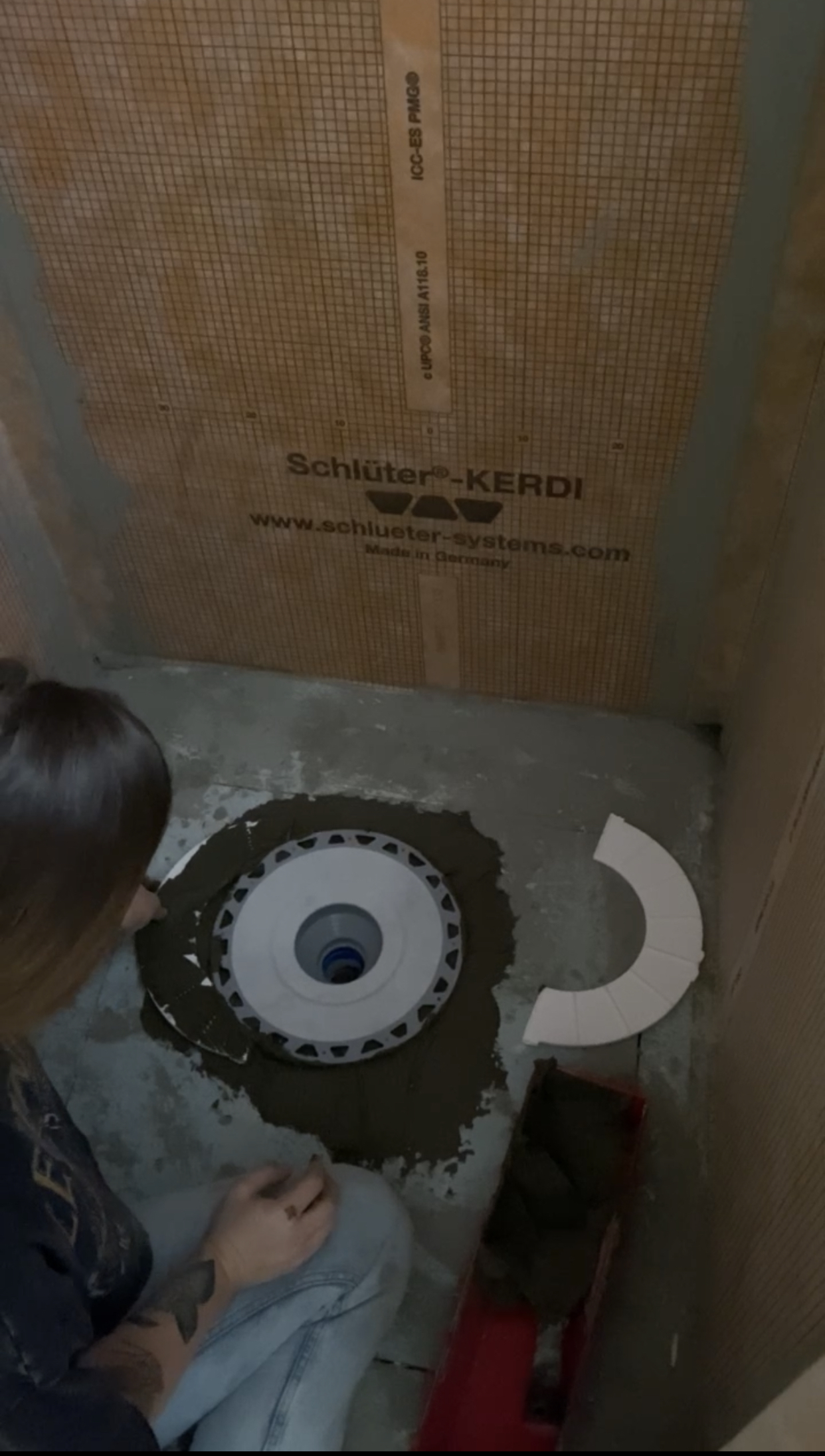

To prep the drain, I used the Schluter instructions for installing a drain where there is NO plumbing access (this means that I can’t access the shower plumbing from underneath). I dry fitted the drain flange into the PVC drain tube under my shower floor using the spacers that came with my shower kit. I then removed and applied PVC cement to the drain flange and drain. Using a twisting motion, I installed the drain. I removed the spacers and coated each side in the thin-set. I also spread thin-set under and around the drain flange with a small trowel. Then I placed each spacer back under the drain flange to bond it securely to the floor. After that, I removed the excess thin-set and wiped the area clean.

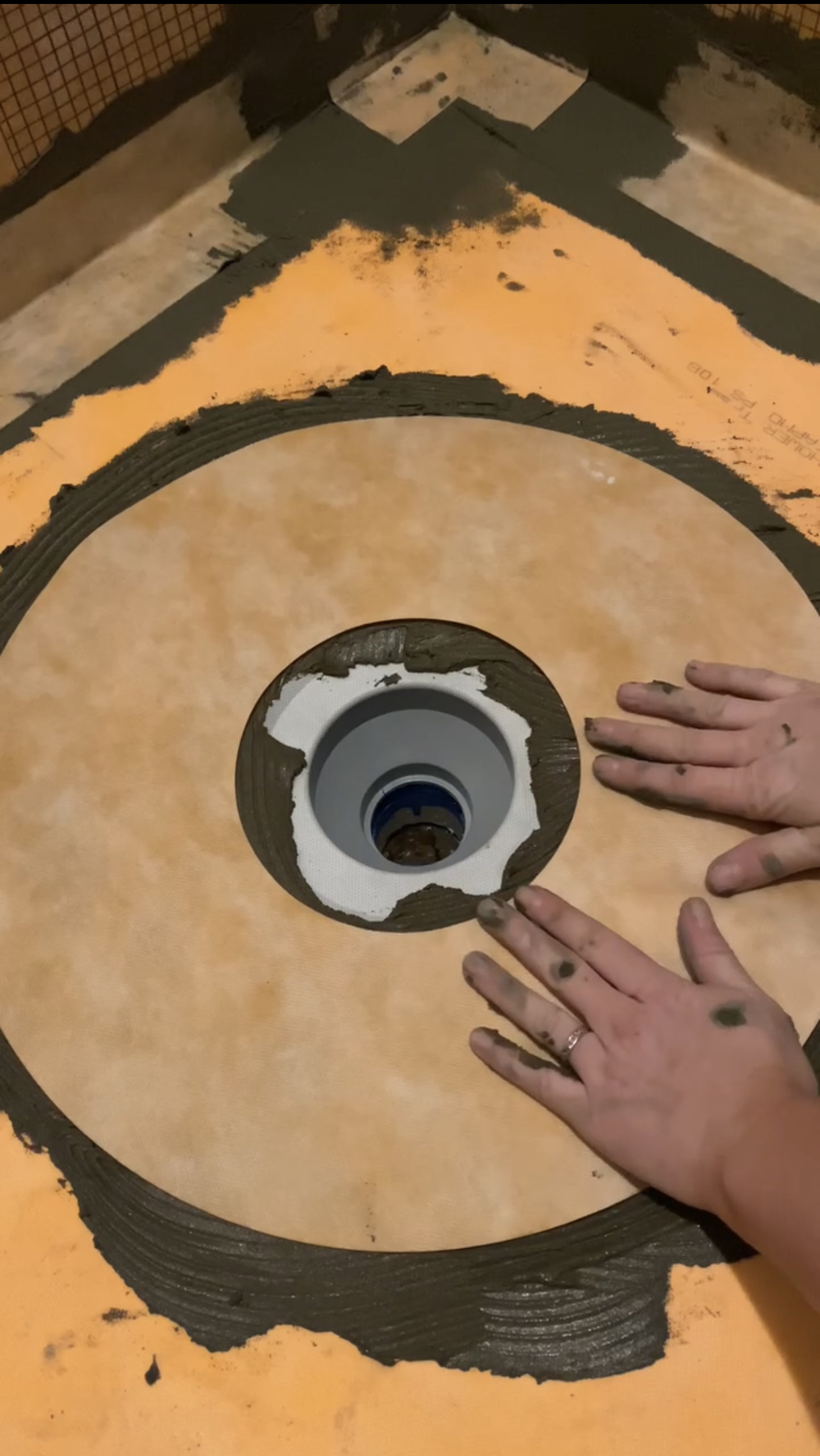

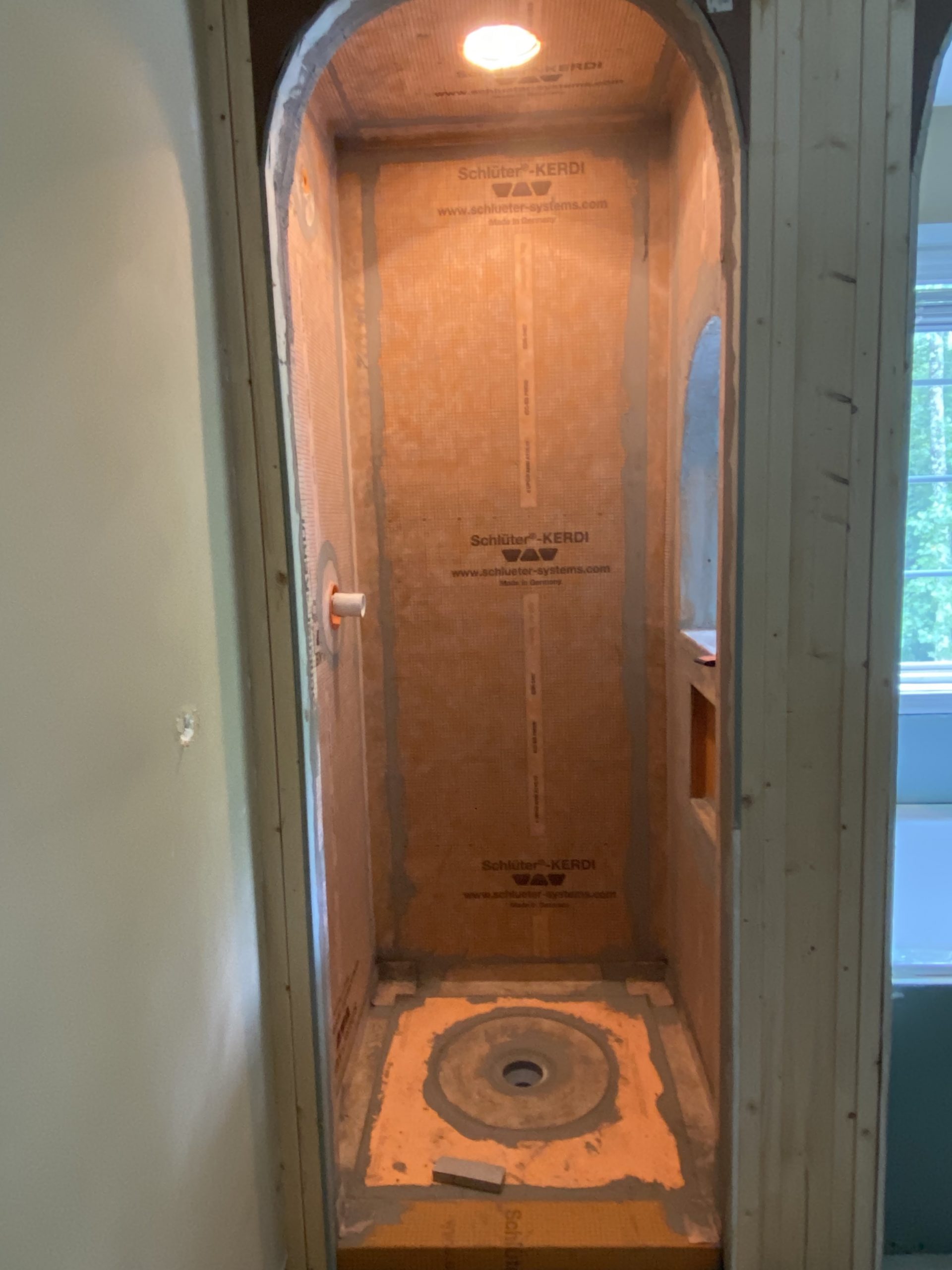

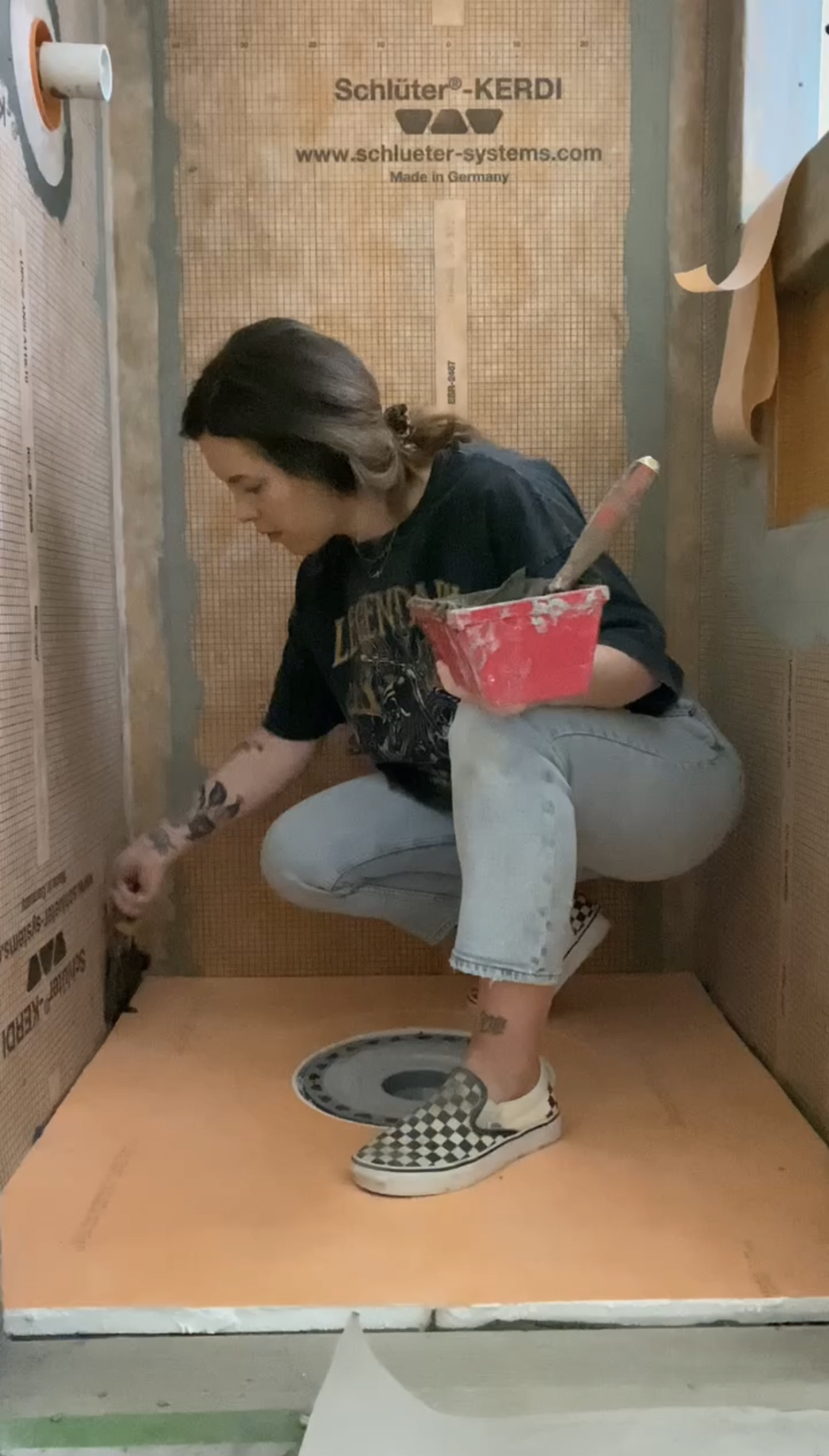

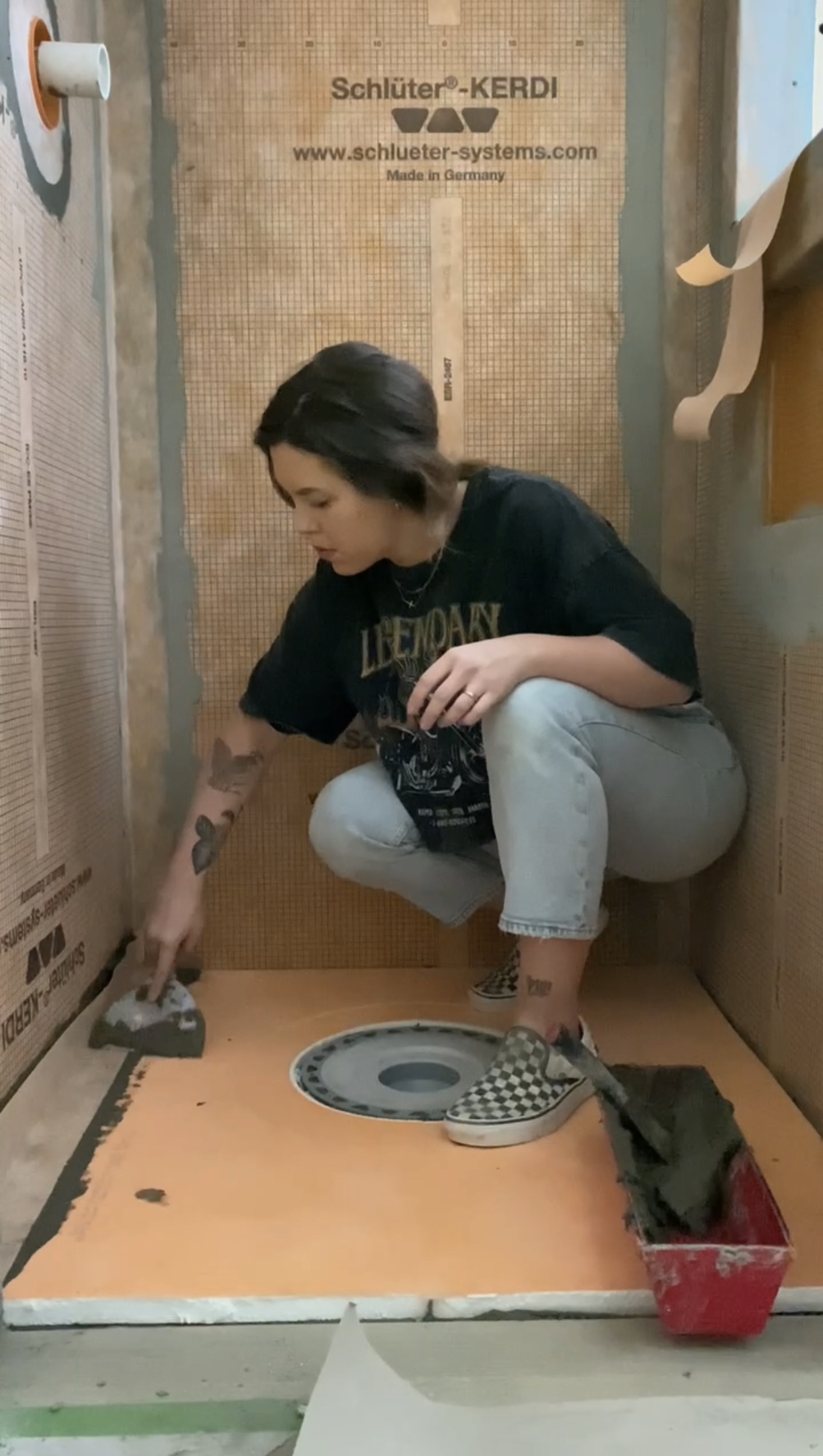

The products from Schluter are able to be cut to size using a utility knife. I cut down my shower pan and curb to size to fit my shower. Then, I applied thin-set to the shower floor and pressed down the shower pan to adhere. This step is repeated with the shower curb. The remaining seam tape was used to seal off the seams around the edges of the shower pan and also installed the corner seals.
